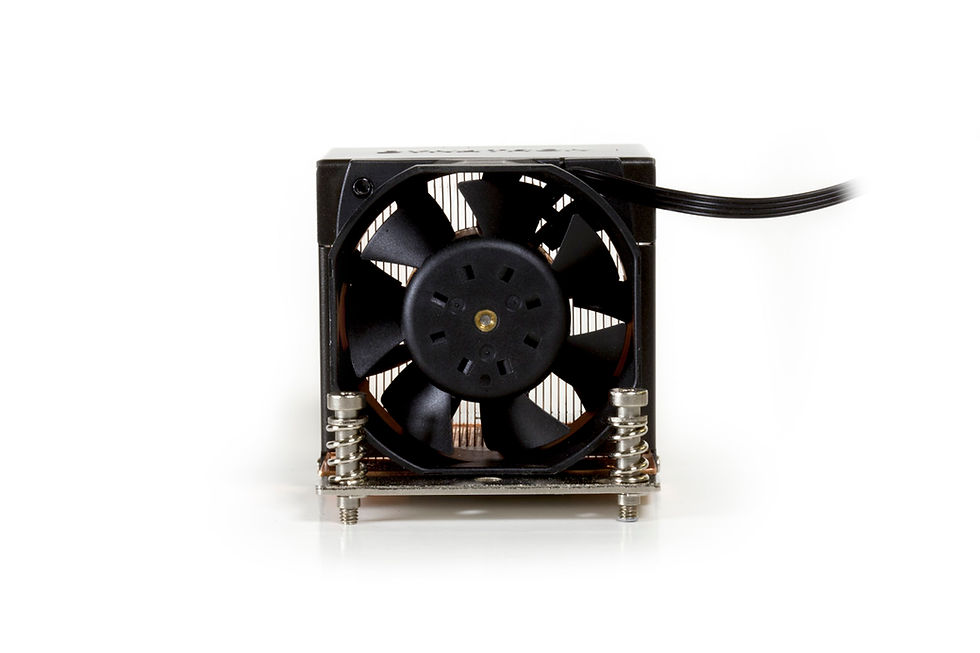

R14

R14

Recommend for Intel® Core™ X-series Processors, Socket FCLGA 2066, Intel® Xeon® Processor, Socket FCLGA 2011 Narrow ILM, 60x60x28 mm PWM Fan, Copper Heatsink support for 2U Server and Up, Support CPU Power up to 165 Watts Heat Dissipation.
CPU Support

Intel
CPU Socket

LGA 2066/2011 (Narrow Type, 56mm x 95mm Mounting Pitch)
Solution

2U Server and Up
Dimensions

102.0 x 70.0 x 67.0 mm
Weight

660 g
Material

Copper Heatsink with Stacked Fins
Fan Dimension

60 x 60 x 28 mm
Speed

At Duty Cycle 20%: 1500 RPM
At Duty Cycle 50%: 3500 RPM
At Duty Cycle 100%: 7000 RPM
Bearing

2 Ball Bearing
Rated Voltage

12V
Power

At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 2.16 W
At Duty Cycle 100%: 7.2 W
Air Flow

At Duty Cycle 20%: 8.8 CFM
At Duty Cycle 50%: 20.3 CFM
At Duty Cycle 100%: 40.5 CFM
Noise Level

At Duty Cycle 20%: 16.0 dBA
At Duty Cycle 50%: 32.9 dBA
At Duty Cycle 100%: 47.5 dBA
Air Pressure

At Duty Cycle 20%: 0.7 mm-H2O
At Duty Cycle 50%: 3.6 mm-H2O
At Duty Cycle 100%: 14.3 mm-H2O
Lead Wire Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

*All product specifications and product images are subject to change without notice.
